Description:

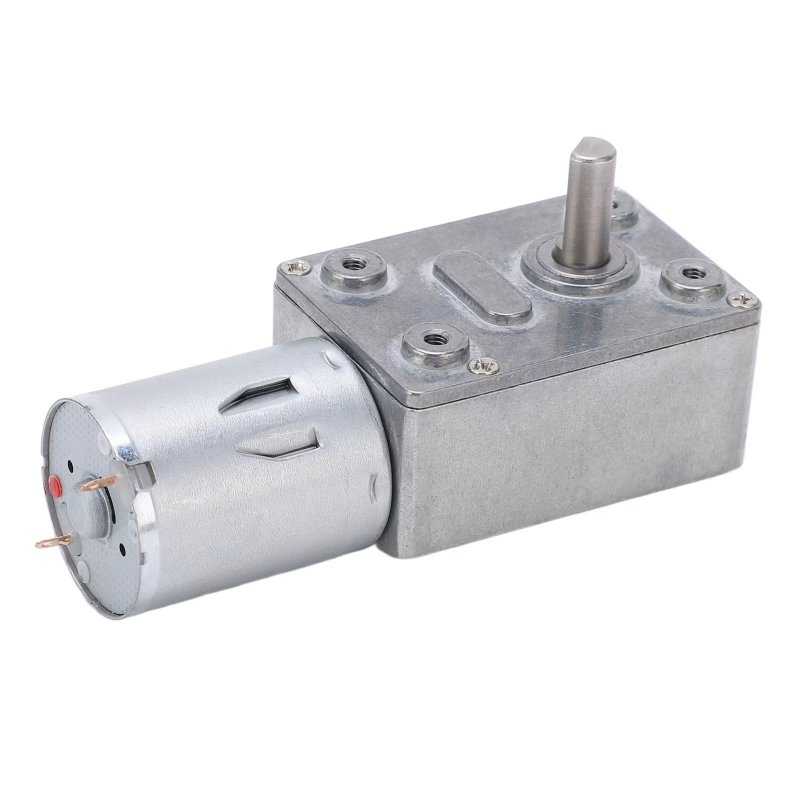

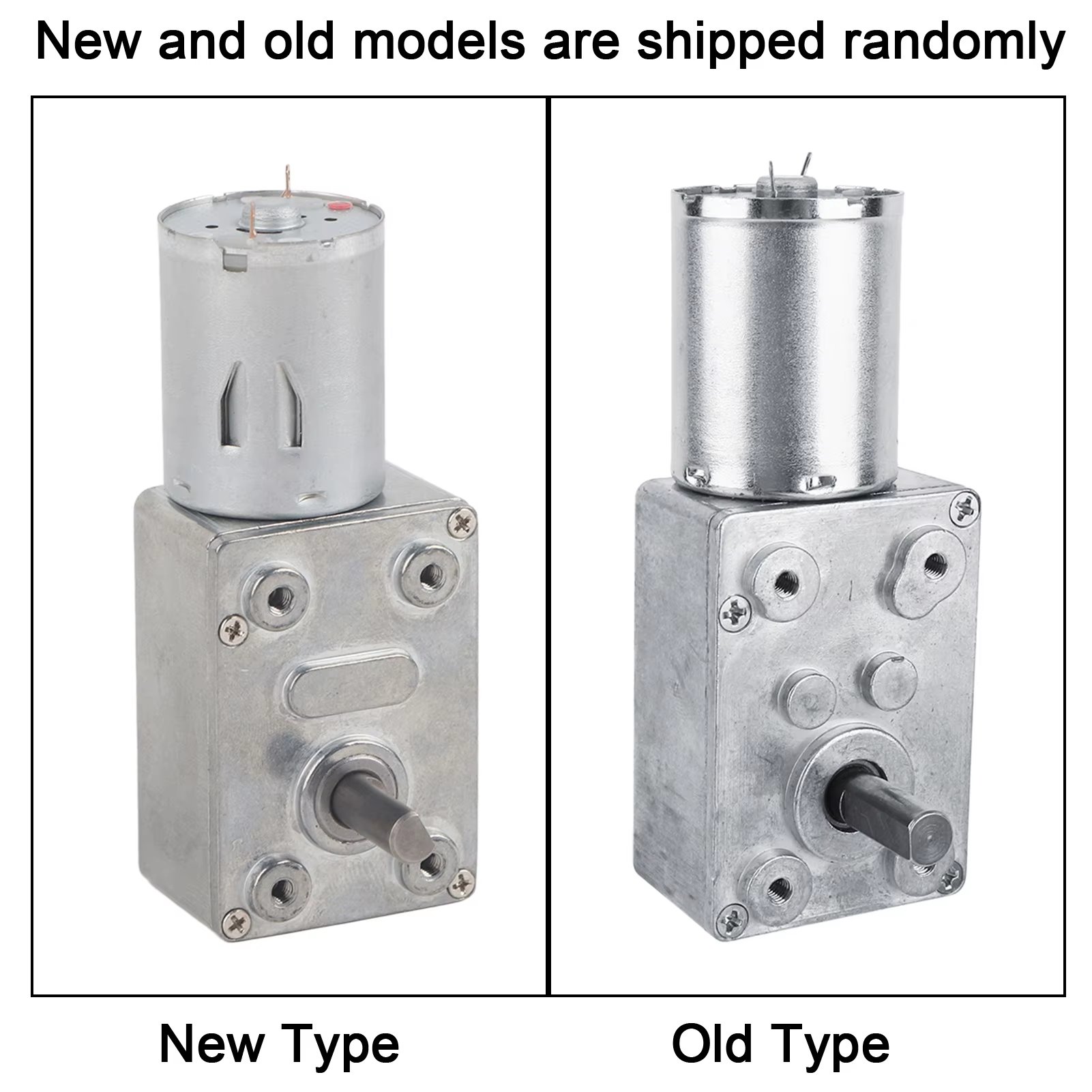

The entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to some of the installation dimensions of this aspect is required. Features: 1. No self-locking, working well 2. The gearbox output shaft direction of the motor shaft is arranged vertically 3. Suitable for: Widely used in windows, a door opener, miniature winch and other occasions Specifications: Load torque: 10KG.CM Speed(RPM) Stall Torque(kg.cm) Stall Current(A) No-load Current(A) Reduction Ratio 5 36.4 0.82 0.12 1:972 6 36.4 0.82 0.12 1:972 20 28.2 1.14 0.22 1:400 40 15 1.15 0.31 1:224 62 16 2.52 0.41 1:224 Note:Rotational speed 10=5RPM 18=6RPM 30=20RPM 55=40RPM 60=62RPM Package contain: 1 x Geared Motor Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
