Be Careful

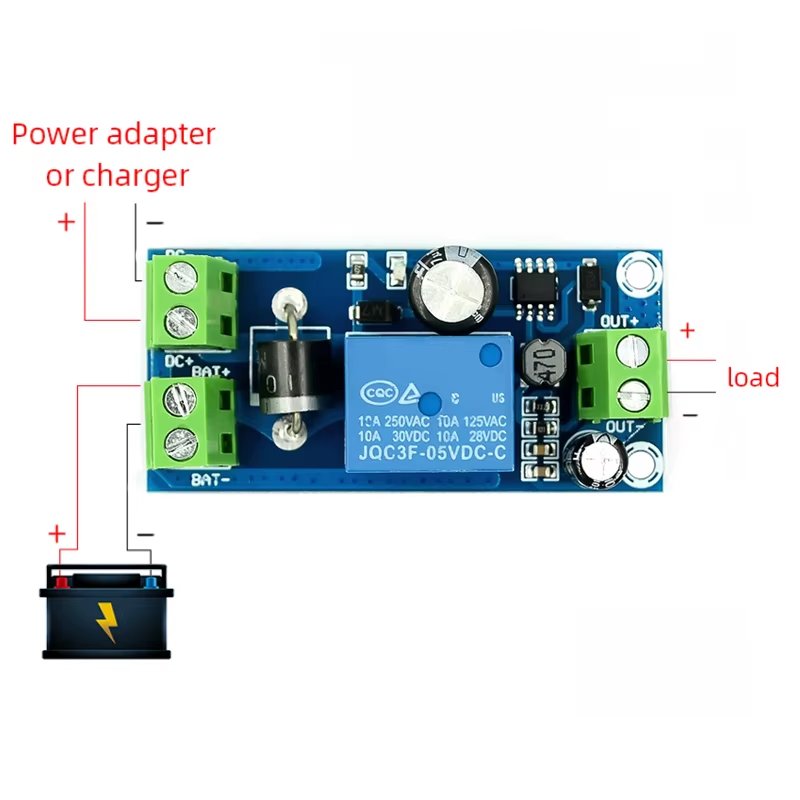

1. power off for a few tenths of a second during switching. 2. the power supply, battery and load shall have the same voltage. 3. when there is power at the DC end, it is preferred to supply power to the load. When the DC terminal is powered on, connect the battery for charging (the specific parameters confirmed by yourself have nothing to do with this module) 4. when there is no power at the DC end, the automatic battery will supply power to the load.

Description

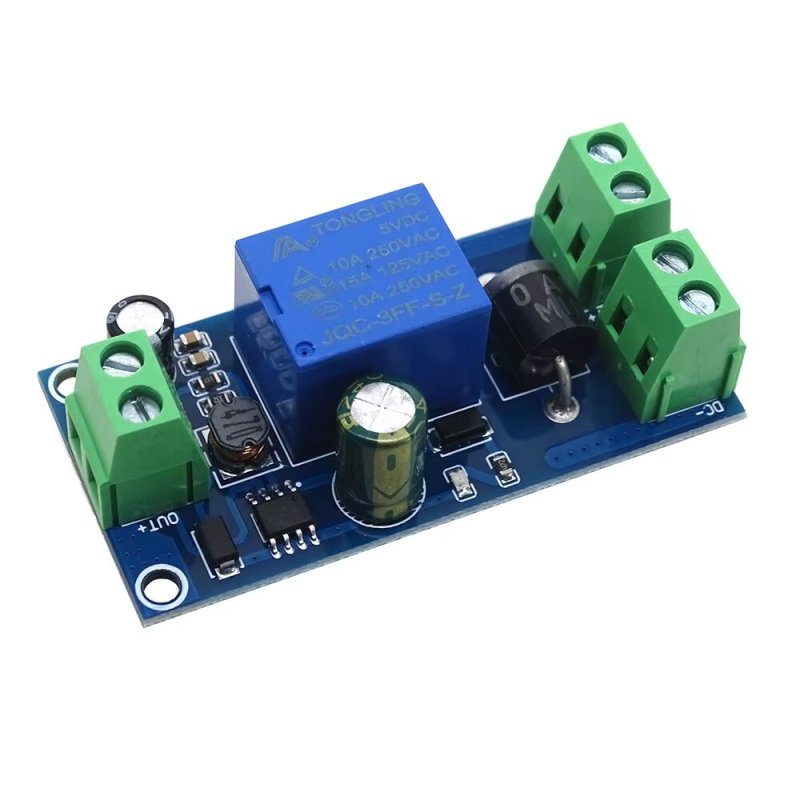

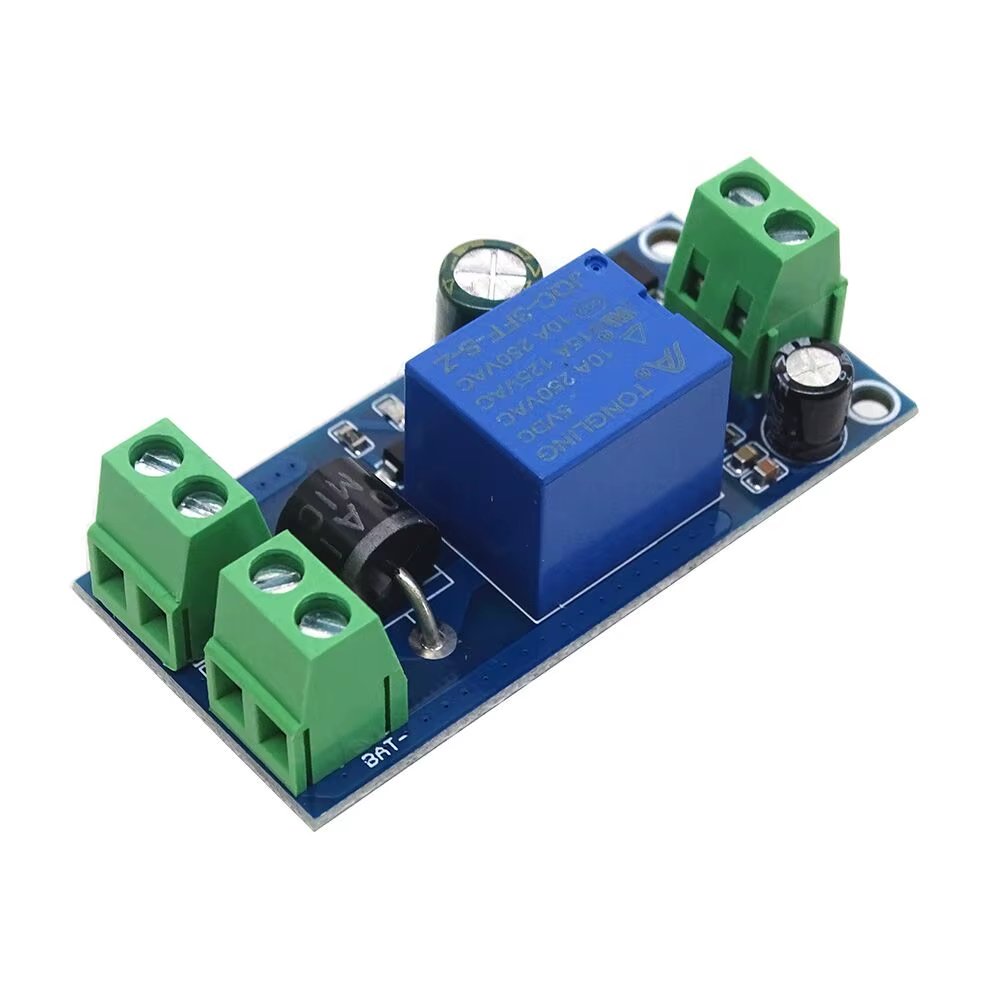

Product Parameters Product Name: power failure automatic switching module Product model: YX850 Scope of application: DC5V-48V Product load: 10A Product size: 61*30*18mm (length * width * height) Mounting hole size: 3mm Installation hole spacing: 23mm Product weight: about 22g Connect the DC terminal to the battery for charging when there is power The charging parameters have nothing to do with this module, but depend on your DC terminal, battery and load.
